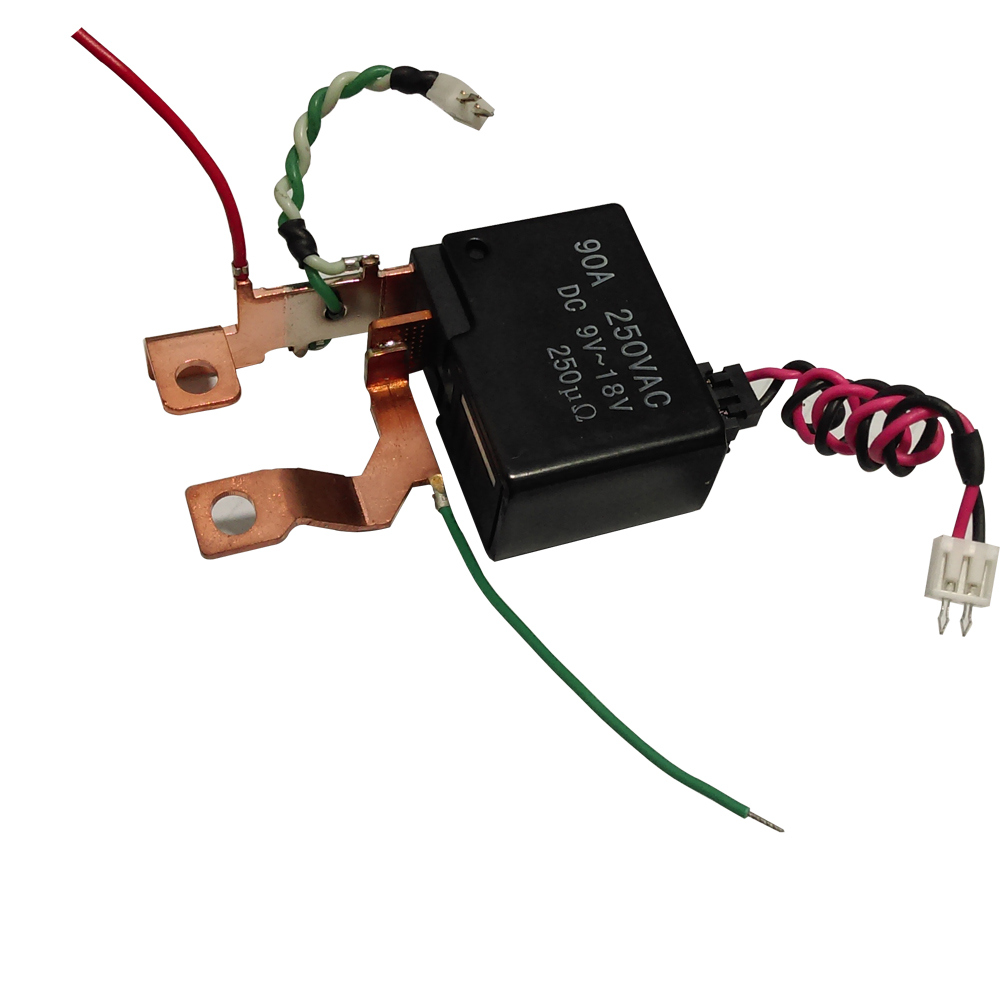

- YK818-G磁保持继电器
- 1.仅需脉冲激励，可单、双线圈，可手动开关控制.
2.负载能力强，可切换60A80A90A/250VAC.
3.功耗低，体积小.
4.可根据客户要求焊接附件.
|
产品详细
触点参数Contact parameters
|
触点型式Contact type
|
一组常闭A group of normally closed
|
|
触点材料Contact material
|
银合金Ag alloy
|
|
接触电阻Contact resistance
|
2mΩ Max(1A 24VDC)
|
|
触点负载Contact load
|
60A 250VAC
|
|
最大切换电流Max switching current
|
60A
|
|
最大切换电压Max switching voltage
|
250VAC
|
|
最大切换功率Max switching power
|
15000VA
|
|
最大短路电流Max switching voltage
|
1800A 10ms
|
性能参数 Performance parameters
|
吸合时间Response time
|
20ms Max
|
|
释放时间Release time
|
20ms Max
|
|
绝缘电阻lnsulation resistance
|
100MΩ Min.(DC500V)
|
|
介质耐压Dielectric withstanding voltage
|
触点与触点间between contacts:AC 1500VAC,50/60Hz 1Min
|
|
触点与线圈间between contacts＆coil:AC 4000VAC,50/60Hz 1min
|
|
抗振动Vibration resistance
|
耐久Durable
|
10～55Hz,双振幅1.5mm
|
|
误动作False action
|
10～55Hz,双振幅1.5mm
|
|
抗冲击lmpact resistance
|
耐久Durable
|
10G Min.
|
|
误动作False action
|
50G Min.
|
|
寿命Life times
|
机械寿命Mechanical life
|
100,000cycles
|
|
电气寿命Electrical life
|
10,000cycles
|
|
环境温度Ambient temperature
|
-30℃～+70℃(不冷凝)No condensation
|
|
重量Weight
|
不带附件约38g Without attachment to about 38g
|
|
