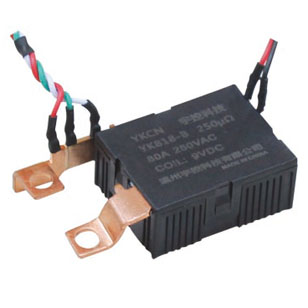

  • YK818B磁保持继电器
  • 1.仅需脉冲激励,可单、双线圈 2.负载能力强,可切换60A、80A/250VAC 3.功耗低,体积小 4.可根据客户要求焊接附件

产品详细

触点参数Contact parameters
触点型式Contact type
一组常闭A group of normally closed
触点材料Contact material
银合金Ag alloy
接触电阻Contact resistance
2mΩ Max(1A 24VDC)
触点负载Contact load
60A 250VAC     80A 250VAC
最大切换电流Max switching current
60A            80A
最大切换电压Max switching voltage
250VAC         250VAC
最大切换功率Max switching power
15000VA        20000VA
最大短路电流Max switching voltage
1800A 10ms     2400A 10ms

性能参数 Performance parameters
吸合时间Response time
20ms Max
释放时间Release time
20ms Max
绝缘电阻lnsulation resistance
100MΩ Min.(DC500V)
介质耐压Dielectric withstanding voltage
触点与触点间between contacts:AC 1500VAC,50/60Hz 1Min
触点与线圈间between contacts&coil:AC 4000VAC,50/60Hz 1min
抗振动Vibration resistance
耐久Durable
10~55Hz,双振幅1.5mm
误动作False action
10~55Hz,双振幅1.5mm
抗冲击lmpact resistance
耐久Durable
10G Min.
误动作False action
50G Min.
寿命Life times
机械寿命Mechanical life
100,000cycles
电气寿命Electrical life
10,000cycles
环境温度Ambient temperature
-30℃~+70℃(不冷凝)No condensation
重量Weight
不带附件约33g Without attachment to about 33g



典型用途Typical uses
●智能电度表                                     ●电力复合开关
●lntelligent electric meter                 ●Composite power switch
注意事项Matters needing attention
1、 磁保持继电器出厂状态为触点闭合状态(复位状态),但因运输或继电器安装时受到冲击等因素的影响,可能会改变状态,因此在使用前(电源接入时)有必要采取措施重新使其复位。
    Magnetic latching relay factory condition for contact closure state,but because carry or installed when subjected to impact,may change state,therefore before use to make its reset.
2、 为了确保磁保持继电器可靠动作,施加到线圈上的激励电压须达到额定值,且脉冲宽度设置须达到动作时间的3倍以上。
    Ln order to ensure the reliability of relay coil voltage,must reaeh value,the pulse width must be 3 times more time.
3、 不带软铜编织线的磁保持继电器,负载引出脚不能锡焊,不能随意扳动,且不能同时刚性固定两个引出脚。
Not with braided line relay,the load pin can not solder,not arbitrarily wrenched,two pins and rigid fixation
4、 磁保持继电器是有极性区分的,如果用户需要的极性与本资料不符,应在订货时特别提出。
Magnetic latching relay is polar differentiation,and if the user needs to polarity and the data is inconsistent,should be in order when the special offers.
5、 继电器入厂检查及使用中应轻拿轻放,防止跌落影响参数。入厂作破坏性检查的产品要与正常产品严格区分标识,不得装机使用。
Relay incoming inspection should be light-light,do the destructive test of products must be consistent with normal goods isolated and labeled,shall not be used.
